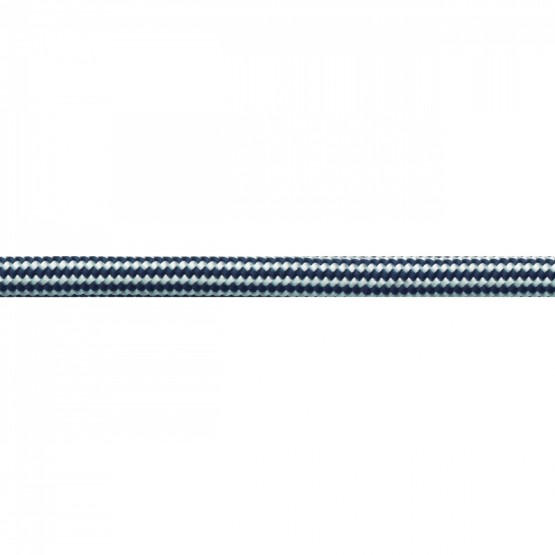

Ultraneema
Double braid, 16 strand, Bio-Dyneema SK 78 core, HT polyester cover.
-
- Low stretch
- Very round.
-
- Not ready to splice or tapering.
- Suitable to use in Clamcleat, CL213-3mm, Clamcleat, CL241 and CL233- 3/4/5mm. 1/8"- 5/32"-3/16".
-
Colors: White base with color tracer in Red, Blue, Black, Green, Yellow.
Diameters: 1,6mm to 6mm / 1/16" to ¼"
ULTRANEEMA Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 1,6 1/16 20 2,0 1,3 120 265 1,2 2 5/64 28 2,8 1,9 186 410 1,8 3 1/8 64 6,4 4,3 540 1.190 5,3 4 5/32 140 14,0 9,4 970 2.138 9,5 5 3/16 186 18,6 12,5 1.290 2.844 12,7 6 1/4 245 26,8 18,0 1.740 3.836 17,1
- Not ready to splice or tapering.
- Suitable to use in Clamcleat, CL213-3mm, Clamcleat, CL241 and CL233- 3/4/5mm. 1/8"- 5/32"-3/16".
Colors: White base with color tracer in Red, Blue, Black, Green, Yellow.
Diameters: 1,6mm to 6mm / 1/16" to ¼"
| ULTRANEEMA | |||||||
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 1,6 | 1/16 | 20 | 2,0 | 1,3 | 120 | 265 | 1,2 |
| 2 | 5/64 | 28 | 2,8 | 1,9 | 186 | 410 | 1,8 |
| 3 | 1/8 | 64 | 6,4 | 4,3 | 540 | 1.190 | 5,3 |
| 4 | 5/32 | 140 | 14,0 | 9,4 | 970 | 2.138 | 9,5 |
| 5 | 3/16 | 186 | 18,6 | 12,5 | 1.290 | 2.844 | 12,7 |
| 6 | 1/4 | 245 | 26,8 | 18,0 | 1.740 | 3.836 | 17,1 |
