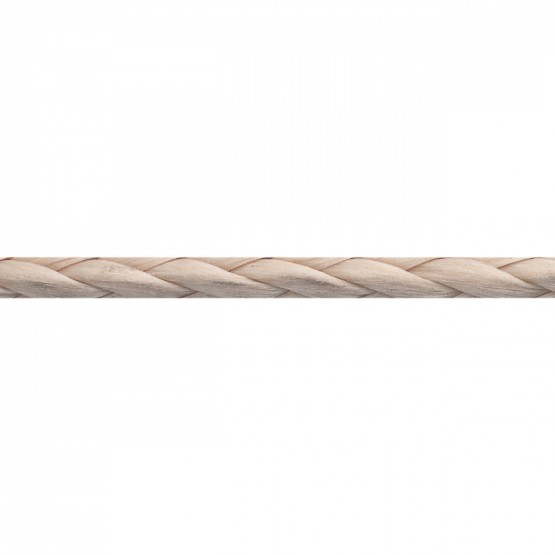

V-Core
Single braid: 12 strand coated Vectran® core.
-
- Low creep
- Low stretch.
-
Colors: Beige (Vectran®)
Diameters (mm / inches): 2,5 to 12 / 7/64’’ to 1/2’’
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 2,5 7/64 4,7 0,5 0,3 622 1 371 6,1 3 1/8 7,1 0,7 0,5 900 1 984 8,8 4 5/32 12,1 1,2 0,8 1 450 3 197 14,2 5 3/16 20 2,0 1,3 2 450 5 401 24,0 6 1/4 30 3,0 2,0 3 460 7 628 33,9 8 5/16 51,2 2,4 1,6 6 000 13 228 58,8 10 3/8 54,1 5,4 3,6 8 700 19 180 85,3 12 1/2 99,6 5,5 3,7 12 000 26 455 117,7 Elongation at 10% of BL 0,42% Elongation at 20% of BL 0,76% Elongation at 30% of BL 1,07% Elongation at 40% of BL 1,36% Elongation at 50% of BL 1,63% * In accordance with the ISO 10325 2018
** More diameters by request
Colors: Beige (Vectran®)
Diameters (mm / inches): 2,5 to 12 / 7/64’’ to 1/2’’
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 2,5 | 7/64 | 4,7 | 0,5 | 0,3 | 622 | 1 371 | 6,1 |
| 3 | 1/8 | 7,1 | 0,7 | 0,5 | 900 | 1 984 | 8,8 |
| 4 | 5/32 | 12,1 | 1,2 | 0,8 | 1 450 | 3 197 | 14,2 |
| 5 | 3/16 | 20 | 2,0 | 1,3 | 2 450 | 5 401 | 24,0 |
| 6 | 1/4 | 30 | 3,0 | 2,0 | 3 460 | 7 628 | 33,9 |
| 8 | 5/16 | 51,2 | 2,4 | 1,6 | 6 000 | 13 228 | 58,8 |
| 10 | 3/8 | 54,1 | 5,4 | 3,6 | 8 700 | 19 180 | 85,3 |
| 12 | 1/2 | 99,6 | 5,5 | 3,7 | 12 000 | 26 455 | 117,7 |
| Elongation at 10% of BL | 0,42% | ||||||
| Elongation at 20% of BL | 0,76% | ||||||
| Elongation at 30% of BL | 1,07% | ||||||
| Elongation at 40% of BL | 1,36% | ||||||
| Elongation at 50% of BL | 1,63% | ||||||
* In accordance with the ISO 10325 2018
** More diameters by request
