Code 0

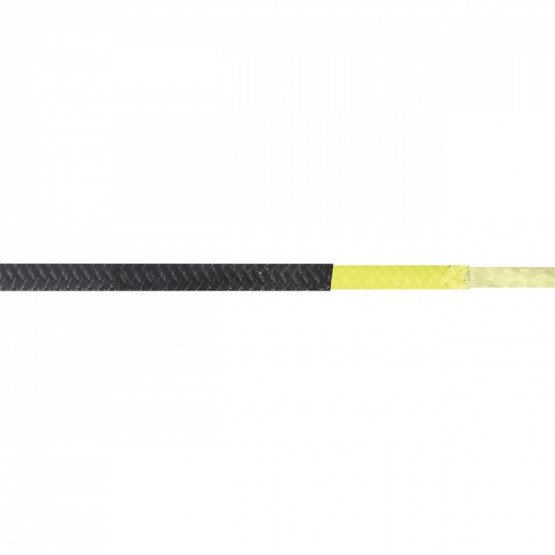

Triple braid: 100% Vectran® anti twist XTM core + Braided Kevlar jacket XTM + 32 plait pre-preg HT Polyester.
-
- Anti torsion rope
- Low stretch
- Low creep.
-
Colors: Black , White.
Other colors on demand.
Diameters (mm / inches): 7, 9, 11, 13, 15 / 5/16", 3/8", 7/16", 1/2", 19/32"
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 7 5/16 60 6,0 4,0 4 600 10 141 45,1 9 3/8 85 8,5 5,7 4 600 10 141 45,1 11 7/16 128 12,8 8,6 6 300 13 889 61,8 13 1/2 175 17,5 11,8 8 500 18 739 83,4 15 19/32 200 20,0 13,4 12 000 26 455 117,7
- Code 0 lines
- Top down furlers.
Colors: Black , White.
Other colors on demand.
Diameters (mm / inches): 7, 9, 11, 13, 15 / 5/16", 3/8", 7/16", 1/2", 19/32"
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 7 | 5/16 | 60 | 6,0 | 4,0 | 4 600 | 10 141 | 45,1 |
| 9 | 3/8 | 85 | 8,5 | 5,7 | 4 600 | 10 141 | 45,1 |
| 11 | 7/16 | 128 | 12,8 | 8,6 | 6 300 | 13 889 | 61,8 |
| 13 | 1/2 | 175 | 17,5 | 11,8 | 8 500 | 18 739 | 83,4 |
| 15 | 19/32 | 200 | 20,0 | 13,4 | 12 000 | 26 455 | 117,7 |
