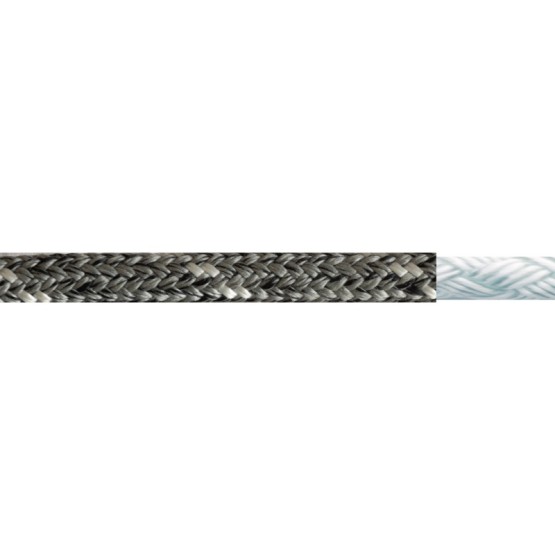

Cruiser 24 Kmix
Double braid. 16 strand HT Polyester core, 24 braid mix HT Polyester / Cordura® cover.
-
- All around uses
- Great performance
- Good grip
- Sheets and control lines.
-
Colors: Mix gray; Red, green, blue, black.
Diameters (mm / inches): 5 to 14 / 3/16’’ to 9/16’’
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 5 3/16 17 1,7 1,1 700 1 543 6,9 6 1/4 29 2,9 1,9 1100 2 425 10,8 7 9/16 35,6 3,6 2,4 1272 2 804 12,5 8 5/16 49,7 5,0 3,3 1 740 3 836 17,1 9 3/8 61 6,1 4,1 2 246 4 951 22,0 10 13/16 76,7 7,7 5,2 3 000 6 614 29,4 12 1/2 104,1 10,4 7,0 3 700 3 670 36,3 13 1/2 124,1 12,4 8,3 3 870 8 532 38,0 14 9/16 145,4 14,5 9,8 4 710 10 384 46,2 Elongation at 10% BL 1,50% Elongation at 20% BL 3,20% Elongation at 30% BL 4,70% Elongation at 40% BL 6,14% Elongation at 50% BL 7,60% * In accordance with the ISO 10547 2017
** Other diameters on demand
Colors: Mix gray; Red, green, blue, black.
Diameters (mm / inches): 5 to 14 / 3/16’’ to 9/16’’
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 5 | 3/16 | 17 | 1,7 | 1,1 | 700 | 1 543 | 6,9 |
| 6 | 1/4 | 29 | 2,9 | 1,9 | 1100 | 2 425 | 10,8 |
| 7 | 9/16 | 35,6 | 3,6 | 2,4 | 1272 | 2 804 | 12,5 |
| 8 | 5/16 | 49,7 | 5,0 | 3,3 | 1 740 | 3 836 | 17,1 |
| 9 | 3/8 | 61 | 6,1 | 4,1 | 2 246 | 4 951 | 22,0 |
| 10 | 13/16 | 76,7 | 7,7 | 5,2 | 3 000 | 6 614 | 29,4 |
| 12 | 1/2 | 104,1 | 10,4 | 7,0 | 3 700 | 3 670 | 36,3 |
| 13 | 1/2 | 124,1 | 12,4 | 8,3 | 3 870 | 8 532 | 38,0 |
| 14 | 9/16 | 145,4 | 14,5 | 9,8 | 4 710 | 10 384 | 46,2 |
| Elongation at 10% BL | 1,50% | ||||||
| Elongation at 20% BL | 3,20% | ||||||
| Elongation at 30% BL | 4,70% | ||||||
| Elongation at 40% BL | 6,14% | ||||||
| Elongation at 50% BL | 7,60% | ||||||
* In accordance with the ISO 10547 2017 ** Other diameters on demand | |||||||
