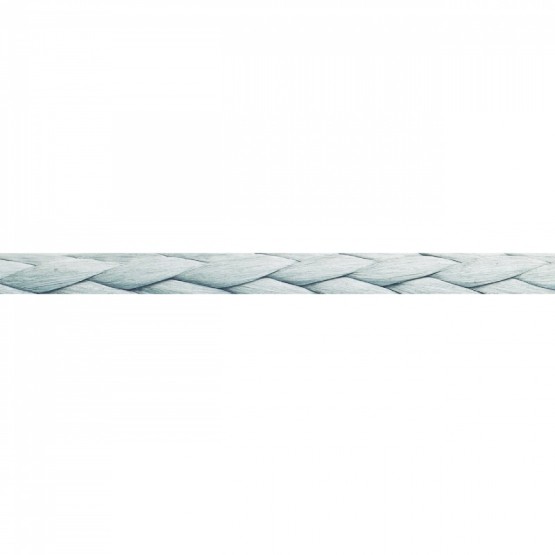

D-Core 78
Single braid: 12 strand, coated Dyneema® Sk78 core.
-
- Lightweight
- Excellent UV resistance.
-
- Clew, head and Tack Loops.
- Leech line, Code 0 /Gennaker Luffline.
-
Colors: White, Grey, Black, Red, Green, Yellow and Orange.
Diameters (mm / inches): 2 to 4mm / 5/64" to 5/32"
Diameter Weight Breaking Load mm inches ktex Kg/120m lbs/100ft kgf lbf kN 2 `5/64 2,4 0,24 0,16 440 970,02 4,31 2,5 7/64 3,7 0,4 0,2 608 1 340 6,0 3 1/8 5 0,5 0,3 972 2 143 9,5 4 5/32 8,7 0,9 0,6 1 631 3 596 16,0
- Clew, head and Tack Loops.
- Leech line, Code 0 /Gennaker Luffline.
Colors: White, Grey, Black, Red, Green, Yellow and Orange.
Diameters (mm / inches): 2 to 4mm / 5/64" to 5/32"
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/120m | lbs/100ft | kgf | lbf | kN |
| 2 | `5/64 | 2,4 | 0,24 | 0,16 | 440 | 970,02 | 4,31 |
| 2,5 | 7/64 | 3,7 | 0,4 | 0,2 | 608 | 1 340 | 6,0 |
| 3 | 1/8 | 5 | 0,5 | 0,3 | 972 | 2 143 | 9,5 |
| 4 | 5/32 | 8,7 | 0,9 | 0,6 | 1 631 | 3 596 | 16,0 |
