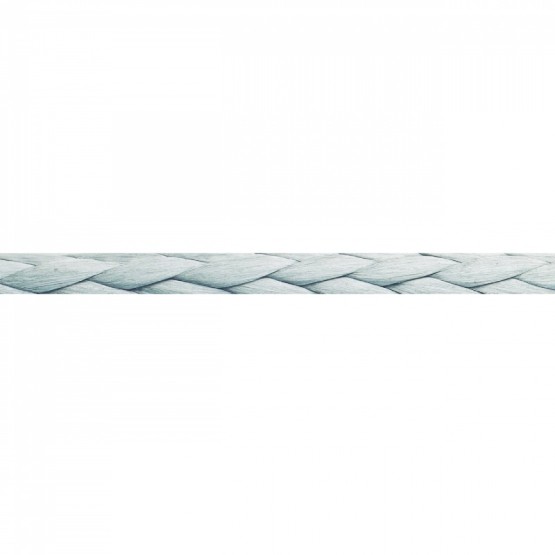

D-Core 78
Single braid, 12 strand, coated Bio-Dyneema® Sk78 core.
-
- Very lightweight
- Excellent UV Resistance
- Loops, various applications.
-
Colors: White, grey, black and yellow.
Other colors on demand
Diameters (mm inches): 2 to 12 3/12’’ to 1/2’’
Diameter Weight Breaking Load mm inches ktex Kg/120m lbs/100ft kgf lbf kN 2 5/64 2,4 0,24 0,16 440 970,02 4,31 2,5 7/64 3,7 0,4 0,2 608 1 340 6,0 3 1/8 5 0,5 0,3 972 2 143 9,5 4 5/32 8,7 0,9 0,6 1 631 3 596 16,0 5 3/16 16 1,6 1,1 3 312 7 302 32,5 6 1/4 20,8 2,1 1,4 4 084 9 004 40,1 7 9/16 26 1,6 1,1 6 107 13 463 59,9 8 5/16 38 2,4 1,6 7 104 15 661 69,7 9 3/8 36 3,6 2,4 9 300 20 503 91,2 10 13/16 61 6,1 4,1 10 401 22 930 102,0 12 1/2 75 5,5 3,7 12 700 27 998 124,5 Elongation at 10% of BL 0.43% Elongation at 20% of BL 0,70% Elongation at 30% of BL 1,00% Elongation at 40% of BL 1,26% Elongation at 50% of BL 1,50% *In accordance to ISO 10325:2018
** More diameters on demand
Colors: White, grey, black and yellow.
Other colors on demand
Diameters (mm inches): 2 to 12 3/12’’ to 1/2’’
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/120m | lbs/100ft | kgf | lbf | kN |
| 2 | 5/64 | 2,4 | 0,24 | 0,16 | 440 | 970,02 | 4,31 |
| 2,5 | 7/64 | 3,7 | 0,4 | 0,2 | 608 | 1 340 | 6,0 |
| 3 | 1/8 | 5 | 0,5 | 0,3 | 972 | 2 143 | 9,5 |
| 4 | 5/32 | 8,7 | 0,9 | 0,6 | 1 631 | 3 596 | 16,0 |
| 5 | 3/16 | 16 | 1,6 | 1,1 | 3 312 | 7 302 | 32,5 |
| 6 | 1/4 | 20,8 | 2,1 | 1,4 | 4 084 | 9 004 | 40,1 |
| 7 | 9/16 | 26 | 1,6 | 1,1 | 6 107 | 13 463 | 59,9 |
| 8 | 5/16 | 38 | 2,4 | 1,6 | 7 104 | 15 661 | 69,7 |
| 9 | 3/8 | 36 | 3,6 | 2,4 | 9 300 | 20 503 | 91,2 |
| 10 | 13/16 | 61 | 6,1 | 4,1 | 10 401 | 22 930 | 102,0 |
| 12 | 1/2 | 75 | 5,5 | 3,7 | 12 700 | 27 998 | 124,5 |
| Elongation at 10% of BL | 0.43% | ||||||
| Elongation at 20% of BL | 0,70% | ||||||
| Elongation at 30% of BL | 1,00% | ||||||
| Elongation at 40% of BL | 1,26% | ||||||
| Elongation at 50% of BL | 1,50% | ||||||
*In accordance to ISO 10325:2018
** More diameters on demand
