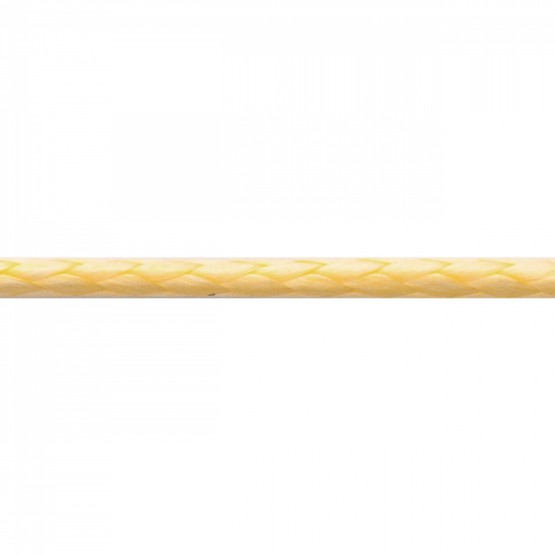

D-Core 78
Single braid: 12 strand, coated Bio-Dyneema® Sk78 core.
-
- Lightweight
- Excellent UV resistance
- Ideal to use in, control lines and loops.
-
Colors: White, grey, Dark Gray, Yellow, blue, green, orange.
Diameters (mm / inches): 2 to 6 / 5/64’’ to 1/4’’
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 2 5/64 2,4 0,24 0,16 440 970,02 4,31 2,5 7/64 3,7 0,4 0,2 608 1 340 6,0 3 1/8 5 0,5 0,3 972 2 143 9,5 4 5/32 8,7 0,9 0,6 1 631 3 596 16,0 5 3/16 16 1,6 1,1 3 312 7 302 32,5 6 1/4 20,8 2,1 1,4 4 084 9 004 40,1 Elongation at 10% of BL 0.43% Elongation at 20% of BL 0,70% Elongation at 30% of BL 1,00% Elongation at 40% of BL 1,26% Elongation at 50% of BL 1,50% * In accordance with the ISO 10325 2018
** More diameters by request
Colors: White, grey, Dark Gray, Yellow, blue, green, orange.
Diameters (mm / inches): 2 to 6 / 5/64’’ to 1/4’’
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 2 | 5/64 | 2,4 | 0,24 | 0,16 | 440 | 970,02 | 4,31 |
| 2,5 | 7/64 | 3,7 | 0,4 | 0,2 | 608 | 1 340 | 6,0 |
| 3 | 1/8 | 5 | 0,5 | 0,3 | 972 | 2 143 | 9,5 |
| 4 | 5/32 | 8,7 | 0,9 | 0,6 | 1 631 | 3 596 | 16,0 |
| 5 | 3/16 | 16 | 1,6 | 1,1 | 3 312 | 7 302 | 32,5 |
| 6 | 1/4 | 20,8 | 2,1 | 1,4 | 4 084 | 9 004 | 40,1 |
| Elongation at 10% of BL | 0.43% | ||||||
| Elongation at 20% of BL | 0,70% | ||||||
| Elongation at 30% of BL | 1,00% | ||||||
| Elongation at 40% of BL | 1,26% | ||||||
| Elongation at 50% of BL | 1,50% | ||||||
* In accordance with the ISO 10325 2018 ** More diameters by request | |||||||
