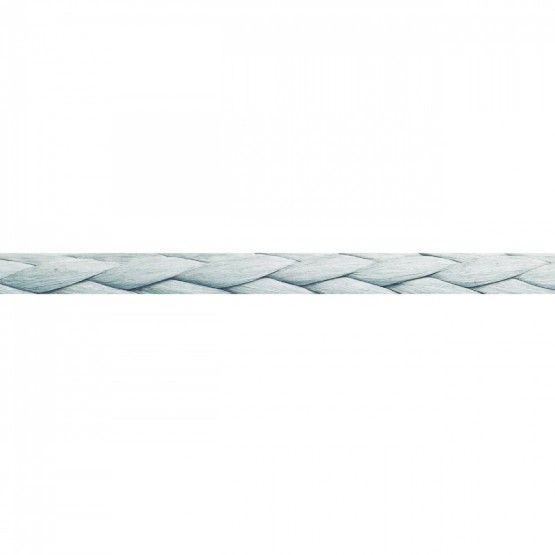

D-Core 78 XTM
12 strand, coated Bio-Dyneema® Sk78. Extreme pre-stretched core.
-
- Lightweight, very low creep
- Purchase systems with high static loads.
-
Colors: White, grey, black, Yellow and Orange
Other colors on demand
Diameters (mm / inches): 4 to 10 / 5/32’’ to 3/8’’
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 4 5/32 12,6 1,3 0,8 2 430 5 357 23,8 5 3/16 17,5 1,8 1,2 3 100 6 834 30,4 6 1/4 19 1,9 1,3 4 450 9 810 43,6 7 9/16 27,7 2,8 1,9 6 300 13 889 61,8 8 5/16 36,1 3,6 2,4 8 000 17 637 78,5 9 3/8 46,6 4,7 3,1 10 220 22 531 100,2 10 13/16 58,7 5,9 3,9 12 100 26 675 118,7 Elongation at 10% of BL 0.28% Elongation at 20% of BL 0,50% Elongation at 30% of BL 0,70% Elongation at 40% of BL 0,90% Elongation at 50% of BL 1,10% *In accordance to ISO 10325:2018
Colors: White, grey, black, Yellow and Orange
Other colors on demand
Diameters (mm / inches): 4 to 10 / 5/32’’ to 3/8’’
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 4 | 5/32 | 12,6 | 1,3 | 0,8 | 2 430 | 5 357 | 23,8 |
| 5 | 3/16 | 17,5 | 1,8 | 1,2 | 3 100 | 6 834 | 30,4 |
| 6 | 1/4 | 19 | 1,9 | 1,3 | 4 450 | 9 810 | 43,6 |
| 7 | 9/16 | 27,7 | 2,8 | 1,9 | 6 300 | 13 889 | 61,8 |
| 8 | 5/16 | 36,1 | 3,6 | 2,4 | 8 000 | 17 637 | 78,5 |
| 9 | 3/8 | 46,6 | 4,7 | 3,1 | 10 220 | 22 531 | 100,2 |
| 10 | 13/16 | 58,7 | 5,9 | 3,9 | 12 100 | 26 675 | 118,7 |
| Elongation at 10% of BL | 0.28% | ||||||
| Elongation at 20% of BL | 0,50% | ||||||
| Elongation at 30% of BL | 0,70% | ||||||
| Elongation at 40% of BL | 0,90% | ||||||
| Elongation at 50% of BL | 1,10% | ||||||
*In accordance to ISO 10325:2018
