D-Core 99
SK99®– the latest offering from DSM Dyneema®. SK99 has 20% strength advantage over SK78 and crucially retains the same elongation and creep characteristics as SK78 – outgunning SK90 on all levels! SK99 has an unmatched strength-to-weight ratio and has carved a niche for itself as the ultimate performance core material.

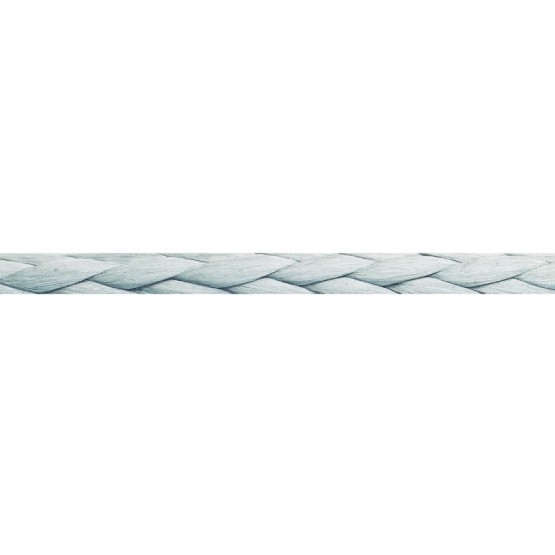

Construction: 12 strand coated Bio-Dyneema® Sk99 core.
-
- Lightweight, excellent UV Resistance
- Ultimate performance core material
- High dynamical load applications.
- On avarage 20% stronger than SK78®
-
Colors: White, grey, black and yellow.
Other colors on demand.
Diameters (mm/ inches): 2 to 12 - 5/64’’ to 1/2"
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 2 5/64 2,4 0,2 0,2 517 1 140 5,1 2,5 7/64 3,7 0,4 0,2 730 1 609 7,2 3 1/8 5 0,5 0,3 1 166 2 571 11,4 4 5/32 8,7 0,9 0,6 1 957 4 314 19,2 5 3/16 16 1,6 1,1 3 974 8 761 39,0 6 1/4 20,8 2,1 1,4 4 901 10 805 48,1 7 9/16 26 2,6 1,7 7 328 16 155 71,9 8 5/16 38 3,8 2,6 8 525 18 794 83,6 9 3/8 53 5,3 3,6 11 160 24 603 109,4 10 13/16 61 6,1 4,1 12 481 27 515 122,4 12 1/2 75 7,5 5,0 15 240 33 598 149,5 Elongation at 10% of BL 0.41% Elongation at 20% of BL 0,70% Elongation at 30% of BL 0,96% Elongation at 40% of BL 1,21% Elongation at 50% of BL 1,46% *In accordance to ISO 10325:2018
** More diameters by request
Colors: White, grey, black and yellow.
Other colors on demand.
Diameters (mm/ inches): 2 to 12 - 5/64’’ to 1/2"
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 2 | 5/64 | 2,4 | 0,2 | 0,2 | 517 | 1 140 | 5,1 |
| 2,5 | 7/64 | 3,7 | 0,4 | 0,2 | 730 | 1 609 | 7,2 |
| 3 | 1/8 | 5 | 0,5 | 0,3 | 1 166 | 2 571 | 11,4 |
| 4 | 5/32 | 8,7 | 0,9 | 0,6 | 1 957 | 4 314 | 19,2 |
| 5 | 3/16 | 16 | 1,6 | 1,1 | 3 974 | 8 761 | 39,0 |
| 6 | 1/4 | 20,8 | 2,1 | 1,4 | 4 901 | 10 805 | 48,1 |
| 7 | 9/16 | 26 | 2,6 | 1,7 | 7 328 | 16 155 | 71,9 |
| 8 | 5/16 | 38 | 3,8 | 2,6 | 8 525 | 18 794 | 83,6 |
| 9 | 3/8 | 53 | 5,3 | 3,6 | 11 160 | 24 603 | 109,4 |
| 10 | 13/16 | 61 | 6,1 | 4,1 | 12 481 | 27 515 | 122,4 |
| 12 | 1/2 | 75 | 7,5 | 5,0 | 15 240 | 33 598 | 149,5 |
| Elongation at 10% of BL | 0.41% | ||||||
| Elongation at 20% of BL | 0,70% | ||||||
| Elongation at 30% of BL | 0,96% | ||||||
| Elongation at 40% of BL | 1,21% | ||||||
| Elongation at 50% of BL | 1,46% | ||||||
*In accordance to ISO 10325:2018
** More diameters by request
