D-Core 99 XTM
SK99®– the latest offering from DSM Dyneema®. SK99 has 20% strength advantage over SK78 and crucially retains the same elongation and creep characteristics as SK78 – outgunning SK90 on all levels! SK99 has an unmatched strength-to-weight ratio and has carved a niche for itself as the ultimate performance core material.

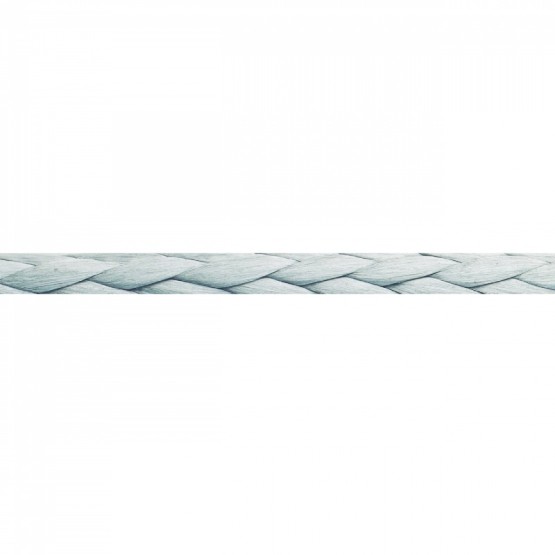

Construction: 12 strand coated Bio-Dyneema® Sk99 core, with an EXTREME PRE-STRETCH.
-
- Lightweight, excellent UV Resistance
- Ultimate performance core material
- High dynamical load applications.
- On avarage 20% stronger than SK78® XTM
-
-
Colors: White, grey, black and yellow.
Other colors on demand
Diameters (mm / inches): 4 to 10mm / 5/32’’ to 3/8’’
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 4 5/32 12,6 1,3 0,8 2 916 6 429 28,6 5 3/16 17,5 1,8 1,2 3 720 8 201 36,5 6 1/4 19 1,9 1,3 5 340 11 772 52,4 7 9/16 27,7 2,8 1,9 7 560 16 667 74,1 8 5/16 36,1 3,6 2,4 9 600 21 164 94,1 9 3/8 46,6 4,7 3,1 12 264 27 037 120,3 10 13/16 58,7 5,9 3,9 14 520 32 011 142,4 Elongation at 10% of BL 0.33% Elongation at 20% of BL 0,59% Elongation at 30% of BL 0,83% Elongation at 40% of BL 1,05% Elongation at 50% of BL 1,29% * In accordance with the ISO 10325 2018
-
