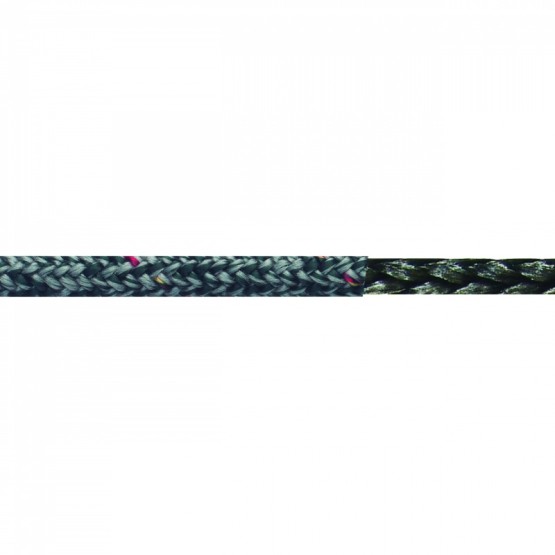

D-Cup 78 Kmix
Double braid. 12 strand coated, Bio SK78® core + 24 plait , HT Polyester + Cordura® cover.
-
- High load all round uses
- Excellent grip on jammers & clutches
- Ideal to use on Halyards.
-
-
Colors: Mix Grey Cordura + Polyester in; black, royal blue, red, green, orange and yellow.
Other colors by demand.
Standard Diameters (mm/inches): 4 to 10mm / 5/16" to 13/16"
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 4 5/32 14,0 1,40 0,94 800 1 764 7,8 5 3/16 17,8 1,78 1,20 1 450 3 197 14,2 6 1/4 22,3 2,23 1,50 1 750 3 858 17,2 7 9/16 34,0 3,40 2,28 2 400 5 291 23,5 8 5/16 41,0 4,10 2,76 3 090 6 812 30,3 9 3/8 53,4 5,34 3,59 4 120 9 083 40,4 10 13/16 60,0 6,00 4,03 4 900 10 802 48,1 Elongation at 10% of BL 0,30% Elongation at 20% of BL 0,60% Elongation at 30% of BL 0,80% Elongation at 40% of BL 1,00% Elongation at 50% of BL 1,20% * In accordance with the ISO 10325 2018
** More diameters by request
-
