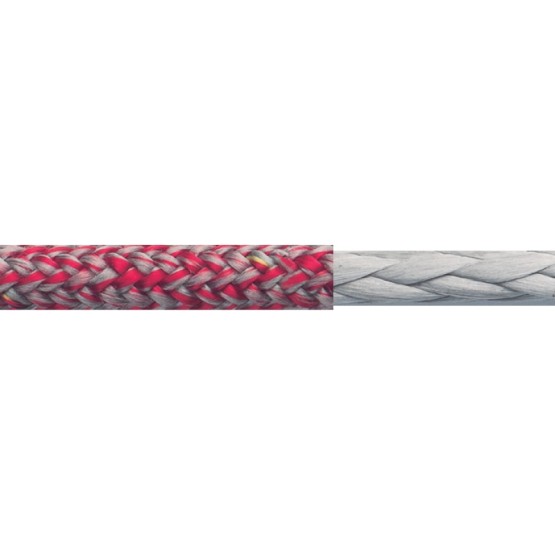

D-Cup 78 Kmix
Double braid: 12 strand coated, Bio Dyneema® Sk78 core, 24 plait mix HT Polyester / Cordura cover.
-
- All around, ready to splice or tapering.
-
- Excellent for sheets, halyards and control lines.
-
Colors: Mix of grey and, red, green, blue, yellow, grey.
Diameters (mm / inches): 4 to 10 / 5/16’’ to 13/16’’
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 4 5/16 14,0 1,40 0,94 800 1 764 7,8 5 3/8 17,8 1,78 1,20 1 450 3 197 14,2 6 1/2 22,3 2,23 1,50 1 750 3 858 17,2 7 9/16 34,0 3,40 2,28 2 400 5 291 23,5 8 5/8 41,0 4,10 2,76 3 090 6 812 30,3 9 3/8 53,4 5,34 3,59 4 120 9 083 40,4 10 13/16 60,0 6,00 4,03 4 900 10 802 48,1 Elongation at 10% of BL 0,30% Elongation at 20% of BL 0,60% Elongation at 30% of BL 0,80% Elongation at 40% of BL 1,00% Elongation at 50% of BL 1,20% * In accordance with the ISO 10325 2018
- Excellent for sheets, halyards and control lines.
Colors: Mix of grey and, red, green, blue, yellow, grey.
Diameters (mm / inches): 4 to 10 / 5/16’’ to 13/16’’
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 4 | 5/16 | 14,0 | 1,40 | 0,94 | 800 | 1 764 | 7,8 |
| 5 | 3/8 | 17,8 | 1,78 | 1,20 | 1 450 | 3 197 | 14,2 |
| 6 | 1/2 | 22,3 | 2,23 | 1,50 | 1 750 | 3 858 | 17,2 |
| 7 | 9/16 | 34,0 | 3,40 | 2,28 | 2 400 | 5 291 | 23,5 |
| 8 | 5/8 | 41,0 | 4,10 | 2,76 | 3 090 | 6 812 | 30,3 |
| 9 | 3/8 | 53,4 | 5,34 | 3,59 | 4 120 | 9 083 | 40,4 |
| 10 | 13/16 | 60,0 | 6,00 | 4,03 | 4 900 | 10 802 | 48,1 |
| Elongation at 10% of BL | 0,30% | ||||||
| Elongation at 20% of BL | 0,60% | ||||||
| Elongation at 30% of BL | 0,80% | ||||||
| Elongation at 40% of BL | 1,00% | ||||||
| Elongation at 50% of BL | 1,20% | ||||||
* In accordance with the ISO 10325 2018
