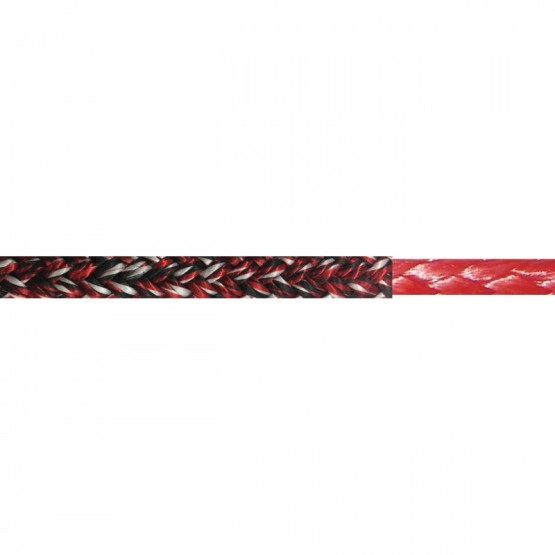

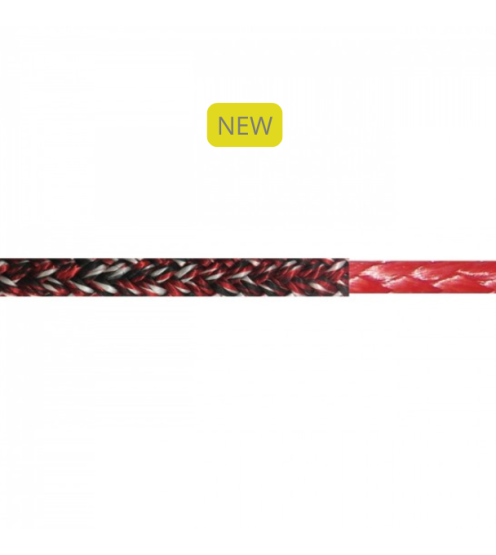

D-Cup 78 Kmix Special
Double braid. 12 strand coated, Bio SK78® core + 24 or 32 plait , HT Polyester + Technora® + SK78® cover.
-
- High load uses
- Excellent resistance on winches and blocks
- Ideal to use on sheets.
-
olors: Mix White(SK78) / Black( Technora) + Polyester , royal blue, red, green, orange and yellow.
Other colors by demand.
Standard Diameters (mm/inches): 8 to 14mm / 5/16" to 9/16"
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 8 5/16 41,0 4,10 2,76 3 090 6 812 30,3 9 3/8 53,4 5,34 3,59 4 120 9 083 40,4 10 13/16 60,0 6,00 4,03 4 900 10 802 48,1 12 1/2 95,0 9,50 6,38 6 600 14 550 64,7 14 9/16 129,0 12,90 8,67 8 400 18 519 82,4 Elongation at 10% of BL 0,30% Elongation at 20% of BL 0,60% Elongation at 30% of BL 0,80% Elongation at 40% of BL 1,00% Elongation at 50% of BL 1,20% * In accordance with the ISO "10325 2018
- Ideal for sheets.
olors: Mix White(SK78) / Black( Technora) + Polyester , royal blue, red, green, orange and yellow.
Other colors by demand.
Standard Diameters (mm/inches): 8 to 14mm / 5/16" to 9/16"
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 8 | 5/16 | 41,0 | 4,10 | 2,76 | 3 090 | 6 812 | 30,3 |
| 9 | 3/8 | 53,4 | 5,34 | 3,59 | 4 120 | 9 083 | 40,4 |
| 10 | 13/16 | 60,0 | 6,00 | 4,03 | 4 900 | 10 802 | 48,1 |
| 12 | 1/2 | 95,0 | 9,50 | 6,38 | 6 600 | 14 550 | 64,7 |
| 14 | 9/16 | 129,0 | 12,90 | 8,67 | 8 400 | 18 519 | 82,4 |
| Elongation at 10% of BL | 0,30% | ||||||
| Elongation at 20% of BL | 0,60% | ||||||
| Elongation at 30% of BL | 0,80% | ||||||
| Elongation at 40% of BL | 1,00% | ||||||
| Elongation at 50% of BL | 1,20% | ||||||
* In accordance with the ISO "10325 2018
