D-Cup 78 Olympic

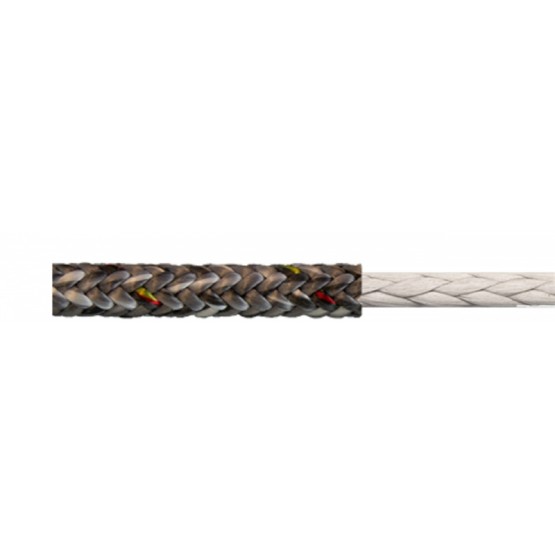

Double braid: 12 strand coated, Bio Dyneema® Sk78 core, mix PP Multi / Dyneema® / Technora® cover.
-
- Very good durability for sheets.
- Premium rope for Nacra 17 Mainsheet, J70 Kite sheet.
-
Colors: Mix of White/Black and, white, red, grey, green, blue, black, yellow.
Diameters (mm / inches): Ø4,5 mm; Ø5mm; Ø6,5mm; Ø7mm
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 4,5 New! 5/32 14,1 1,41 0,95 800 1 764 7,8 5 3/16 16,1 1,61 1,08 1 450 3 197 14,2 6 1/2 22,0 2,20 1,48 1 750 3 858 17,2 7 9/16 30,6 3,06 2,06 2 881 6 351 28,3 Elongation at 10% of BL 0,30% Elongation at 20% of BL 0,60% Elongation at 30% of BL 0,80% Elongation at 40% of BL 1,00% Elongation at 50% of BL 1,20% * In accordance with the ISO 10325 2018
- Excellent for sheets, and control lines.
Colors: Mix of White/Black and, white, red, grey, green, blue, black, yellow.
Diameters (mm / inches): Ø4,5 mm; Ø5mm; Ø6,5mm; Ø7mm
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 4,5 New! | 5/32 | 14,1 | 1,41 | 0,95 | 800 | 1 764 | 7,8 |
| 5 | 3/16 | 16,1 | 1,61 | 1,08 | 1 450 | 3 197 | 14,2 |
| 6 | 1/2 | 22,0 | 2,20 | 1,48 | 1 750 | 3 858 | 17,2 |
| 7 | 9/16 | 30,6 | 3,06 | 2,06 | 2 881 | 6 351 | 28,3 |
| Elongation at 10% of BL | 0,30% | ||||||
| Elongation at 20% of BL | 0,60% | ||||||
| Elongation at 30% of BL | 0,80% | ||||||
| Elongation at 40% of BL | 1,00% | ||||||
| Elongation at 50% of BL | 1,20% | ||||||
* In accordance with the ISO 10325 2018
