D-Cup 78 Planet

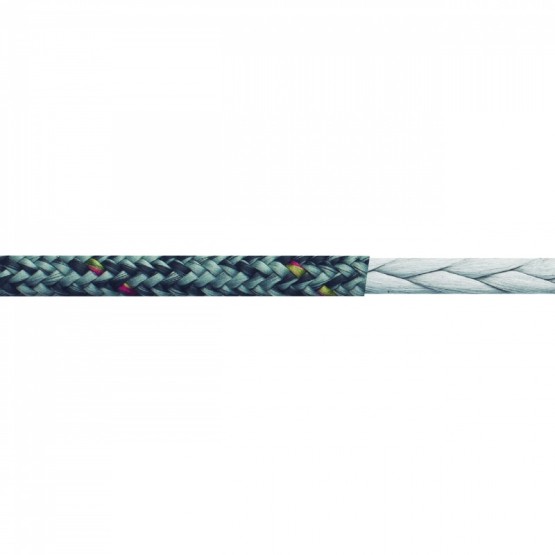

Double Braid, 12 strand coated Bio-Dyneema ® SK78 Core, 24 plait rPet 100% recicle Polyester cover
-
- High load all round uses
- Ideal to use on halyards, sheets and guys.
- 100% made of recicle material
-
Colors: Mix Grey/Colors ( Black/Grey/Blue/ Natural)
Standard Diameters (mm/inches): 4 to 18mm / 5/16" to 3/4"
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 4 5/32 14,0 1,40 0,94 800 1 764 7,8 5 3/16 17,8 1,78 1,20 1 450 3 197 14,2 6 1/4 22,3 2,23 1,50 1 750 3 858 17,2 7 9/16 34,0 3,40 2,28 2 400 5 291 23,5 8 5/16 41,0 4,10 2,76 3 090 6 812 30,3 9 3/8 53,4 5,34 3,59 4 120 9 083 40,4 10 13/16 60,0 6,00 4,03 4 900 10 802 48,1 11 7/16 78,9 7,89 5,30 5 593 12 330 54,8 12 1/2 95,0 9,50 6,38 6 600 14 550 64,7 14 9/16 129,0 12,90 8,67 8 400 18 519 82,4 16 5/8 172,0 17,20 11,56 12 500 27 557 122,6 18 3/4 184,0 18,40 12,36 15 000 33 069 147,1 Elongation at 10% of BL 0,30% Elongation at 20% of BL 0,60% Elongation at 30% of BL 0,80% Elongation at 40% of BL 1,00% Elongation at 50% of BL 1,20% * In accordance with the ISO 10325 2018
** More diameters by request
Colors: Mix Grey/Colors ( Black/Grey/Blue/ Natural)
Standard Diameters (mm/inches): 4 to 18mm / 5/16" to 3/4"
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 4 | 5/32 | 14,0 | 1,40 | 0,94 | 800 | 1 764 | 7,8 |
| 5 | 3/16 | 17,8 | 1,78 | 1,20 | 1 450 | 3 197 | 14,2 |
| 6 | 1/4 | 22,3 | 2,23 | 1,50 | 1 750 | 3 858 | 17,2 |
| 7 | 9/16 | 34,0 | 3,40 | 2,28 | 2 400 | 5 291 | 23,5 |
| 8 | 5/16 | 41,0 | 4,10 | 2,76 | 3 090 | 6 812 | 30,3 |
| 9 | 3/8 | 53,4 | 5,34 | 3,59 | 4 120 | 9 083 | 40,4 |
| 10 | 13/16 | 60,0 | 6,00 | 4,03 | 4 900 | 10 802 | 48,1 |
| 11 | 7/16 | 78,9 | 7,89 | 5,30 | 5 593 | 12 330 | 54,8 |
| 12 | 1/2 | 95,0 | 9,50 | 6,38 | 6 600 | 14 550 | 64,7 |
| 14 | 9/16 | 129,0 | 12,90 | 8,67 | 8 400 | 18 519 | 82,4 |
| 16 | 5/8 | 172,0 | 17,20 | 11,56 | 12 500 | 27 557 | 122,6 |
| 18 | 3/4 | 184,0 | 18,40 | 12,36 | 15 000 | 33 069 | 147,1 |
| Elongation at 10% of BL | 0,30% | ||||||
| Elongation at 20% of BL | 0,60% | ||||||
| Elongation at 30% of BL | 0,80% | ||||||
| Elongation at 40% of BL | 1,00% | ||||||
| Elongation at 50% of BL | 1,20% | ||||||
* In accordance with the ISO 10325 2018
** More diameters by request
