D-Cup 78 XTM PBO/Vt

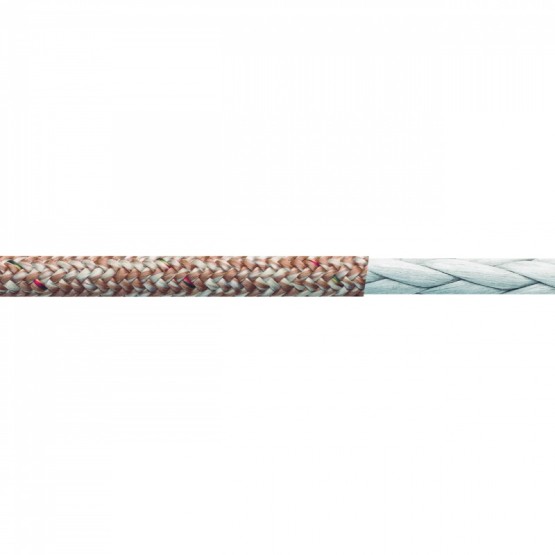

Double braid. 12 strand, coated, Bio SK78® Extreme pre-stretched core + 24 plait , PBO® + Vectran® + Cordura® cover.
-
- High load uses where ZERO elongation is needed
- Very strong abrasion resistance
- Ideal to Gennaker sheets.
-
Colors: Orange (PBO®) + beige(Vectran®) + White (Cordura®)
Standard Diameters (mm/inches): 6 to 12mm / 1/4" to 1/2"
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 6 1/4 27 2,7 1,8 2 553 5 628 25,0 7 9/32 38 3,8 2,6 3 850 8 488 37,8 8 5/16 55 5,5 3,7 4 200 9 259 41,2 9 3/8 59 5,9 4,0 5 800 12 787 56,9 10 13/16 73 7,3 4,9 6 800 14 991 66,7 11 7/16 85 8,5 5,7 7600 16 755 74,5 12 1/2 114 11,4 7,7 8 580 18 915 84,1 Elongation at 10% of BL 0,31% Elongation at 20% of BL 0,53% Elongation at 30% of BL 0,73% Elongation at 40% of BL 0,92% Elongation at 50% of BL 1,14% * In accordance with the ISO 10325 2018
Colors: Orange (PBO®) + beige(Vectran®) + White (Cordura®)
Standard Diameters (mm/inches): 6 to 12mm / 1/4" to 1/2"
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 6 | 1/4 | 27 | 2,7 | 1,8 | 2 553 | 5 628 | 25,0 |
| 7 | 9/32 | 38 | 3,8 | 2,6 | 3 850 | 8 488 | 37,8 |
| 8 | 5/16 | 55 | 5,5 | 3,7 | 4 200 | 9 259 | 41,2 |
| 9 | 3/8 | 59 | 5,9 | 4,0 | 5 800 | 12 787 | 56,9 |
| 10 | 13/16 | 73 | 7,3 | 4,9 | 6 800 | 14 991 | 66,7 |
| 11 | 7/16 | 85 | 8,5 | 5,7 | 7600 | 16 755 | 74,5 |
| 12 | 1/2 | 114 | 11,4 | 7,7 | 8 580 | 18 915 | 84,1 |
| Elongation at 10% of BL | 0,31% | ||||||
| Elongation at 20% of BL | 0,53% | ||||||
| Elongation at 30% of BL | 0,73% | ||||||
| Elongation at 40% of BL | 0,92% | ||||||
| Elongation at 50% of BL | 1,14% | ||||||
* In accordance with the ISO 10325 2018
