D-Cup 99 KMIX TN
SK99®– the latest offering from DSM Dyneema®. SK99 has 20% strength advantage over SK78 and crucially retains the same elongation and creep characteristics as SK78 – outgunning SK90 on all levels! SK99 has an unmatched strength-to-weight ratio and has carved a niche for itself as the ultimate performance core material.

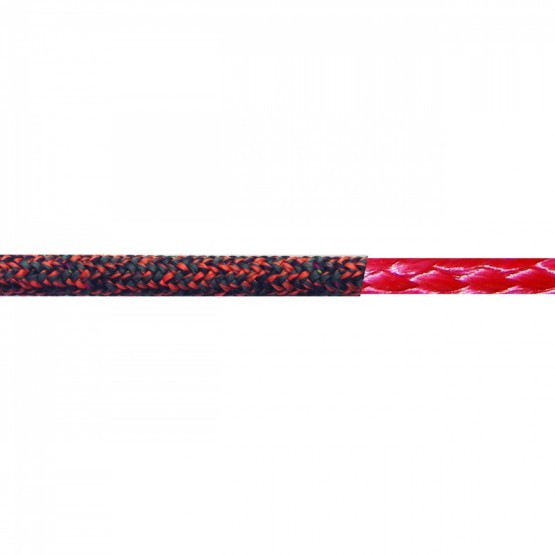

Construction: Double braid. 12 strand SK99® core + 24 plait , HT Polyester + Tecnora® cover.
24 or 32 plait cover for + 14mm.
-
- Super hight load uses
- Excellent grip on Jammers & Clutches
- God grip on winches
- Ideal to use on halyards, and Spinnaker sheets.
-
Colors: Mix black(Tecnora®), black, royal blue, red, green, orange and yellow
Other colors on demand. Standard
Diameters (mm/inches): 4 to 14mm / 5/32" to 9/16"
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 4 5/32 14 1,4 0,9 960 2 116 9,4 5 3/16 17,8 1,8 1,2 1 740 3 836 17,1 6 1/4 22,3 2,2 1,5 2 100 4 630 20,6 7 9/32 28,4 2,8 1,9 2 340 5 159 22,9 8 5/16 41 4,1 2,8 3 708 8 175 36,4 9 3/8 54 5,4 3,6 4 200 9 259 41,2 10 13/16 60 6,0 4,0 5 880 12 963 57,7 12 1/2 95 9,5 6,4 7 920 17 460 77,7 14 9/16 129 12,9 8,7 10 080 22 222 98,9 Elongation at 10% of BL 0,32% Elongation at 20% of BL 0,56% Elongation at 30% of BL 0,78% Elongation at 40% of BL 0,98% Elongation at 50% of BL 1,19% * In accordance with the ISO 10325 2018
** More diameters on demand
Colors: Mix black(Tecnora®), black, royal blue, red, green, orange and yellow
Other colors on demand. Standard
Diameters (mm/inches): 4 to 14mm / 5/32" to 9/16"
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 4 | 5/32 | 14 | 1,4 | 0,9 | 960 | 2 116 | 9,4 |
| 5 | 3/16 | 17,8 | 1,8 | 1,2 | 1 740 | 3 836 | 17,1 |
| 6 | 1/4 | 22,3 | 2,2 | 1,5 | 2 100 | 4 630 | 20,6 |
| 7 | 9/32 | 28,4 | 2,8 | 1,9 | 2 340 | 5 159 | 22,9 |
| 8 | 5/16 | 41 | 4,1 | 2,8 | 3 708 | 8 175 | 36,4 |
| 9 | 3/8 | 54 | 5,4 | 3,6 | 4 200 | 9 259 | 41,2 |
| 10 | 13/16 | 60 | 6,0 | 4,0 | 5 880 | 12 963 | 57,7 |
| 12 | 1/2 | 95 | 9,5 | 6,4 | 7 920 | 17 460 | 77,7 |
| 14 | 9/16 | 129 | 12,9 | 8,7 | 10 080 | 22 222 | 98,9 |
| Elongation at 10% of BL | 0,32% | ||||||
| Elongation at 20% of BL | 0,56% | ||||||
| Elongation at 30% of BL | 0,78% | ||||||
| Elongation at 40% of BL | 0,98% | ||||||
| Elongation at 50% of BL | 1,19% | ||||||
* In accordance with the ISO 10325 2018
** More diameters on demand
