D-Cup 99 XTM KMIX PBO
SK99®– the latest offering from DSM Dyneema®. SK99 has 20% strength advantage over SK78 and crucially retains the same elongation and creep characteristics as SK78 – outgunning SK90 on all levels! SK99 has an unmatched strength-to-weight ratio and has carved a niche for itself as the ultimate performance core material.

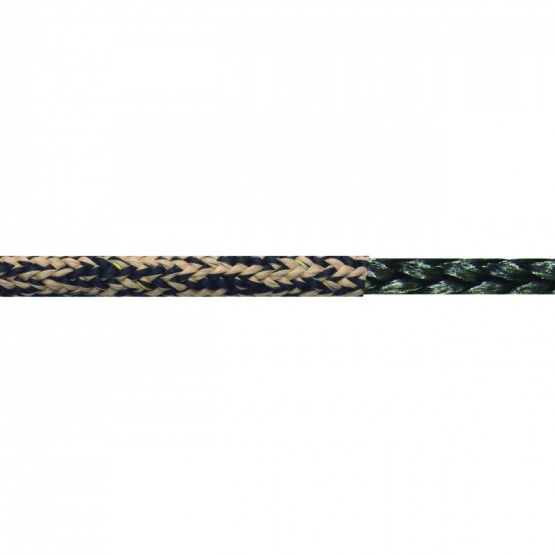

Construction: Double braid. 12 strand SK99® Extreme pre-stretched core + 24 plait , HT Polyester + PBO® cover.
-
- Super Hight load uses.
- Unmatched strength-to-ratio results.
- On averege 20% stronger than the SK78 ® where ZERO elongation is needed
- Excellent abrasion resistance
- Ideal to Gennaker sheets.
-
Colors: Mix Orange(Zylon ®), grey, black, royal blue, red, green, orange and yellow.
Other colors by demand.
Standard Diameters (mm/inches): 6 to 12mm / 1/4" to 1/2"
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 6 1/4 27 2,7 1,8 2 289 5 046 22,4 7 9/32 38 3,8 2,6 2 550 5 622 25,0 8 5/16 55 5,5 3,7 4 041 8 909 39,6 9 3/8 59 5,9 4,0 4 578 10 093 44,9 10 13/16 73 7,3 4,9 6 409 14 129 62,9 12 1/2 114 11,4 7,7 8 632 19 030 84,7 Elongation at 10% of BL 0,40% Elongation at 20% of BL 0,65% Elongation at 30% of BL 0,86% Elongation at 40% of BL 1,06% Elongation at 50% of BL 1,26% * In accordance with the ISO 10325 2018
Colors: Mix Orange(Zylon ®), grey, black, royal blue, red, green, orange and yellow.
Other colors by demand.
Standard Diameters (mm/inches): 6 to 12mm / 1/4" to 1/2"
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 6 | 1/4 | 27 | 2,7 | 1,8 | 2 289 | 5 046 | 22,4 |
| 7 | 9/32 | 38 | 3,8 | 2,6 | 2 550 | 5 622 | 25,0 |
| 8 | 5/16 | 55 | 5,5 | 3,7 | 4 041 | 8 909 | 39,6 |
| 9 | 3/8 | 59 | 5,9 | 4,0 | 4 578 | 10 093 | 44,9 |
| 10 | 13/16 | 73 | 7,3 | 4,9 | 6 409 | 14 129 | 62,9 |
| 12 | 1/2 | 114 | 11,4 | 7,7 | 8 632 | 19 030 | 84,7 |
| Elongation at 10% of BL | 0,40% | ||||||
| Elongation at 20% of BL | 0,65% | ||||||
| Elongation at 30% of BL | 0,86% | ||||||
| Elongation at 40% of BL | 1,06% | ||||||
| Elongation at 50% of BL | 1,26% | ||||||
* In accordance with the ISO 10325 2018
