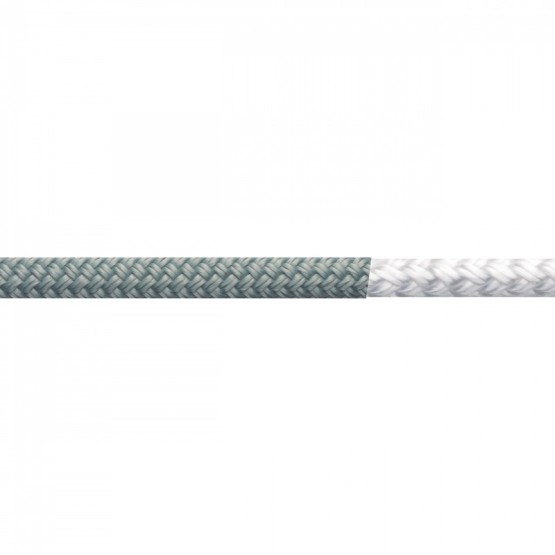

Dockline Master
Double braid, 16 strand braided HT Polyester core, 24 plait HT Polyester with a WAX coating cover.
-
In this rope we use the same construction, as the Dockline Alpha, but made an upgrade on the cover.
We gave a WAX coating to the cover, for three reasons.
1. Seal the strands, to improve chafe resistance, when the rope is moving around the dock.
2. Improve global chafe resistance.
3 Waterproofing the cover. Prevents the rope from getting soaked
-
Mooring Lines
-
Colors: White, silver, navy blue, black.
Other colors on demand.
Diameters (mm / inches): 6 to 36 / 1/4" to 1 1/2"
MOORING (Strength and tenacity) SUPERIOR MOORING -ALPHA DOCKLINE-ALPHA DOCKLINE PLANET Ømm/Inch Kgf Kgf Kgf Kgf 6mm-1/4" 612 920 900 8mm-5/16" 1 081 1 565 2 283 10mm-3/8 1 632 2 250 3 148 2 588 12mm-1/2" 2 284 3 020 4 022 3 637 14mm-9/16" 3 059 4 600 5 247 4 817 16mm-5/8" 4 079 5 640 6 440 5 150 18mm-3/4" 5 099 7 200 7 500 6 800 20mm-13/16" 6 118 8 800 9 441 22mm-7/8" 7 240 10 600 10 853 24mm-1" 8 668 12 000 10 784 26mm-1/1/32" 10 197 14 786 12 644 28mm-1 1/8" 12 033 17 131 18 700 30mm-1 1/4" 13 460 19 681 19 944 32mm- 1 5/16" 15 296 22 332 20 927 36mm- 1 1/2" 19 375 28 246 21 100
Mooring Lines
Colors: White, silver, navy blue, black.
Other colors on demand.
Diameters (mm / inches): 6 to 36 / 1/4" to 1 1/2"
| MOORING | (Strength and tenacity) | |||
| SUPERIOR | MOORING -ALPHA | DOCKLINE-ALPHA | DOCKLINE PLANET | |
| Ømm/Inch | Kgf | Kgf | Kgf | Kgf |
| 6mm-1/4" | 612 | 920 | 900 | |
| 8mm-5/16" | 1 081 | 1 565 | 2 283 | |
| 10mm-3/8 | 1 632 | 2 250 | 3 148 | 2 588 |
| 12mm-1/2" | 2 284 | 3 020 | 4 022 | 3 637 |
| 14mm-9/16" | 3 059 | 4 600 | 5 247 | 4 817 |
| 16mm-5/8" | 4 079 | 5 640 | 6 440 | 5 150 |
| 18mm-3/4" | 5 099 | 7 200 | 7 500 | 6 800 |
| 20mm-13/16" | 6 118 | 8 800 | 9 441 | |
| 22mm-7/8" | 7 240 | 10 600 | 10 853 | |
| 24mm-1" | 8 668 | 12 000 | 10 784 | |
| 26mm-1/1/32" | 10 197 | 14 786 | 12 644 | |
| 28mm-1 1/8" | 12 033 | 17 131 | 18 700 | |
| 30mm-1 1/4" | 13 460 | 19 681 | 19 944 | |
| 32mm- 1 5/16" | 15 296 | 22 332 | 20 927 | |
| 36mm- 1 1/2" | 19 375 | 28 246 | 21 100 | |
