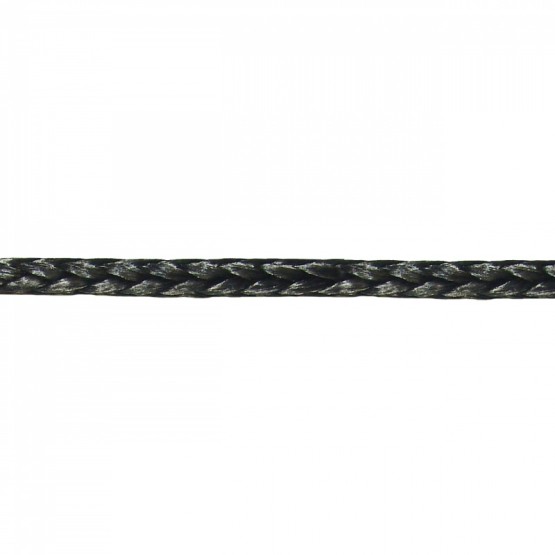

P-Core
12 strand, coated HT Polyester.
-
- Good UV resistant
- Lazy bag rope.
- All round line.
-
Colors: Solid white, Red, Green, Blue, Black, Yellow, Orange.
Other Colors by demand
Diameters (mm / inches): 2,5 to 12 / 7/64" to 1/2"
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 2,5 7/64 5,3 0,5 0,4 250 551 2,5 3 1/8 7,5 0,8 0,5 440 970 4,3 4 5/32 12,1 1,2 0,8 580 1 279 5,7 5 3/16 15,5 1,5 1,0 846 1 865 8,3 6 1/4 22 2,2 1,5 1 267 2 793 12,4 8 5/16 98 9,8 6,6 3 100 6 834 30,4 12 1/2 99,6 9,9 6,7 5 480 12 081 53,7 Elongation at 10% of BL 0,81% Elongation at 20% of BL 1,81% Elongation at 30% of BL 2,80% Elongation at 40% of BL 3,70% Elongation at 50% of BL 4,62% *In accordance to ISO 1141:2021
- Leech Line, Foot Line.
- Lazy bag rope
Colors: Solid white, Red, Green, Blue, Black, Yellow, Orange.
Other Colors by demand
Diameters (mm / inches): 2,5 to 12 / 7/64" to 1/2"
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 2,5 | 7/64 | 5,3 | 0,5 | 0,4 | 250 | 551 | 2,5 |
| 3 | 1/8 | 7,5 | 0,8 | 0,5 | 440 | 970 | 4,3 |
| 4 | 5/32 | 12,1 | 1,2 | 0,8 | 580 | 1 279 | 5,7 |
| 5 | 3/16 | 15,5 | 1,5 | 1,0 | 846 | 1 865 | 8,3 |
| 6 | 1/4 | 22 | 2,2 | 1,5 | 1 267 | 2 793 | 12,4 |
| 8 | 5/16 | 98 | 9,8 | 6,6 | 3 100 | 6 834 | 30,4 |
| 12 | 1/2 | 99,6 | 9,9 | 6,7 | 5 480 | 12 081 | 53,7 |
| Elongation at 10% of BL | 0,81% | ||||||
| Elongation at 20% of BL | 1,81% | ||||||
| Elongation at 30% of BL | 2,80% | ||||||
| Elongation at 40% of BL | 3,70% | ||||||
| Elongation at 50% of BL | 4,62% | ||||||
*In accordance to ISO 1141:2021
