SSC

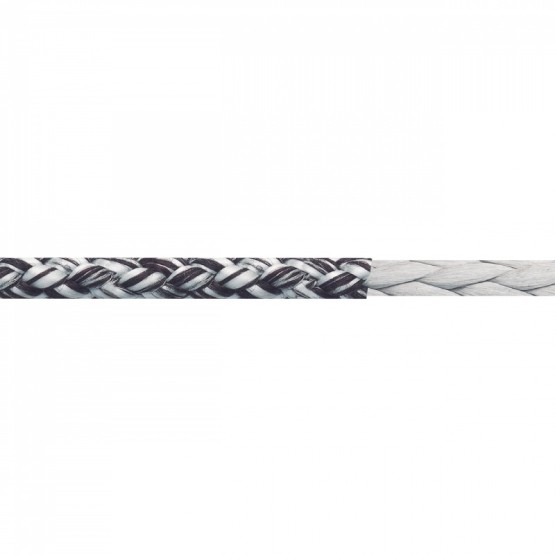

Double braid: braided 12 strand coated Dyneema® Sk78 core, 16 plait (8x2) mix Dyneema® Sk78 / Cordura® cover.
-
- Hight Load
- Good Grip
Excellent abrasion resistance.
-
Colors: Mix of Gray; white, Red, Green, Blue, Yellow.
Available in 8x2 or 16x1 cover construction.
Diameters (mm / inches): 5 to 10 / 3/16" to 3/8"
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 5 3/16 180 18 6 1 200 2 646 11,8 6 1/4 240 24 16,1 1 850 4 078 18,1 7 9/16 300 30 20,2 2 400 1 600 23,5 8 5/16 340 34 22,8 3 050 6 724 29,9 10 13/16 540 54 36,3 4 100 9 039 40,2 Elongation at 10% of BL 0,46% Elongation at 20% of BL 0,80% Elongation at 30% of BL 1,11% Elongation at 40% of BL 1,33% Elongation at 50% of BL 1,64% In accordance to ISO 10325:2018
- Ready to splice or tapering
- Excellent for sheets.
Colors: Mix of Gray; white, Red, Green, Blue, Yellow.
Available in 8x2 or 16x1 cover construction.
Diameters (mm / inches): 5 to 10 / 3/16" to 3/8"
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 5 | 3/16 | 180 | 18 | 6 | 1 200 | 2 646 | 11,8 |
| 6 | 1/4 | 240 | 24 | 16,1 | 1 850 | 4 078 | 18,1 |
| 7 | 9/16 | 300 | 30 | 20,2 | 2 400 | 1 600 | 23,5 |
| 8 | 5/16 | 340 | 34 | 22,8 | 3 050 | 6 724 | 29,9 |
| 10 | 13/16 | 540 | 54 | 36,3 | 4 100 | 9 039 | 40,2 |
| Elongation at 10% of BL | 0,46% | ||||||
| Elongation at 20% of BL | 0,80% | ||||||
| Elongation at 30% of BL | 1,11% | ||||||
| Elongation at 40% of BL | 1,33% | ||||||
| Elongation at 50% of BL | 1,64% | ||||||
In accordance to ISO 10325:2018
