SSF

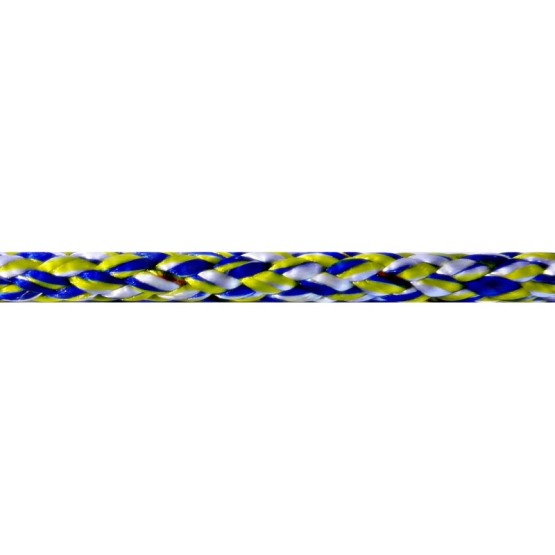

Special Sheet Floating Single braid rope, 8X2 Construction, combining Dyneema SK78 + PP Multifilament.
-
- Soft handling
- Doesn´t absorbe water
-
Colors: Mix White+ 2 colors- White; Black;Blue;Red;Yellow; Green; Neon green.
Diameters: Ø5mm-3/16” ; Ø6mm-1/4” and Ø7mm-9/16”
Diameter Weight Breaking Load Elong % BL mm inches ktex Kg/100m lbs/100ft kgf lbf kN 20% 50% 5 3/16 114 11,4 7,7 693 1.528 6,8 1,60 2,92 6 1/4 194 19,4 13,0 1210 2.668 11,9 1,33 2,67 7 9/16 223 22,3 15,0 1400 1.600 13,7 1,64 3,22 Elongation at 10% of BL 0,80% Elongation at 20% of BL 1,33% Elongation at 30% of BL 1,77% Elongation at 40% of BL 2,18% Elongation at 50% of BL 2,67% In accordance to ISO 10325:2018
- Main Sheets
- Jib Sheets
- Control lines
Colors: Mix White+ 2 colors- White; Black;Blue;Red;Yellow; Green; Neon green.
Diameters: Ø5mm-3/16” ; Ø6mm-1/4” and Ø7mm-9/16”
| Diameter | Weight | Breaking Load | Elong % BL | |||||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN | 20% | 50% | |
| 5 | 3/16 | 114 | 11,4 | 7,7 | 693 | 1.528 | 6,8 | 1,60 | 2,92 | |
| 6 | 1/4 | 194 | 19,4 | 13,0 | 1210 | 2.668 | 11,9 | 1,33 | 2,67 | |
| 7 | 9/16 | 223 | 22,3 | 15,0 | 1400 | 1.600 | 13,7 | 1,64 | 3,22 | |
| Elongation at 10% of BL | 0,80% | |||||||||
| Elongation at 20% of BL | 1,33% | |||||||||
| Elongation at 30% of BL | 1,77% | |||||||||
| Elongation at 40% of BL | 2,18% | |||||||||
| Elongation at 50% of BL | 2,67% | |||||||||
In accordance to ISO 10325:2018
