Top Cruiser MAX

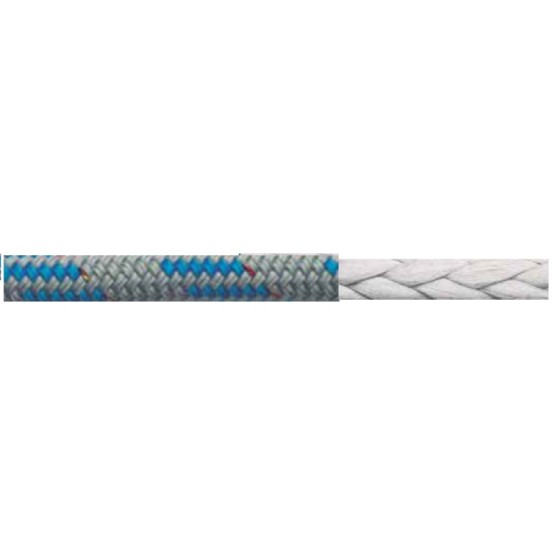

Double braid. 12 strand, Coated mix, Dyneema® Sk78 / PP multi core, 24 plait HT Polyester cover.
-
- High load all round uses
- Very strong cover
- Excellent choice for halyards and sheets.
-
Colors: Silver base + color fleck; Black, Red, Green, Royal blue, yellow and Orange.
Other colors by demand.
Diameters (mm inches): 6 to 14 mm / 1/4’’ to 9/16’’
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 6 1/4 27,6 2,76 1,85 1 524 3 360 14,9 7 9/16 33,3 3,33 2,24 1 767 3 896 17,3 8 5/16 47,3 4,73 3,18 2 564 5 653 25,1 9 3/8 54,3 5,43 3,65 2 730 6 019 26,8 10 13/16 67,8 6,78 4,56 4 316 9 515 42,3 11 7/16 78,0 7,80 5,24 4 281 9 438 42,0 12 1/2 96,4 9,64 6,48 4 637 10 223 45,5 14 9/16 115,5 11,55 7,76 6 622 14 599 64,9 Elongation at 10% of BL 0,50% Elongation at 20% of BL 0,80% Elongation at 30% of BL 1,00% Elongation at 40% of BL 1,20% Elongation at 50% of BL 1,50% * In accordance with the ISO 10325 2018
** More diameters on demand
Colors: Silver base + color fleck; Black, Red, Green, Royal blue, yellow and Orange.
Other colors by demand.
Diameters (mm inches): 6 to 14 mm / 1/4’’ to 9/16’’
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 6 | 1/4 | 27,6 | 2,76 | 1,85 | 1 524 | 3 360 | 14,9 |
| 7 | 9/16 | 33,3 | 3,33 | 2,24 | 1 767 | 3 896 | 17,3 |
| 8 | 5/16 | 47,3 | 4,73 | 3,18 | 2 564 | 5 653 | 25,1 |
| 9 | 3/8 | 54,3 | 5,43 | 3,65 | 2 730 | 6 019 | 26,8 |
| 10 | 13/16 | 67,8 | 6,78 | 4,56 | 4 316 | 9 515 | 42,3 |
| 11 | 7/16 | 78,0 | 7,80 | 5,24 | 4 281 | 9 438 | 42,0 |
| 12 | 1/2 | 96,4 | 9,64 | 6,48 | 4 637 | 10 223 | 45,5 |
| 14 | 9/16 | 115,5 | 11,55 | 7,76 | 6 622 | 14 599 | 64,9 |
| Elongation at 10% of BL | 0,50% | ||||||
| Elongation at 20% of BL | 0,80% | ||||||
| Elongation at 30% of BL | 1,00% | ||||||
| Elongation at 40% of BL | 1,20% | ||||||
| Elongation at 50% of BL | 1,50% | ||||||
* In accordance with the ISO 10325 2018
** More diameters on demand
