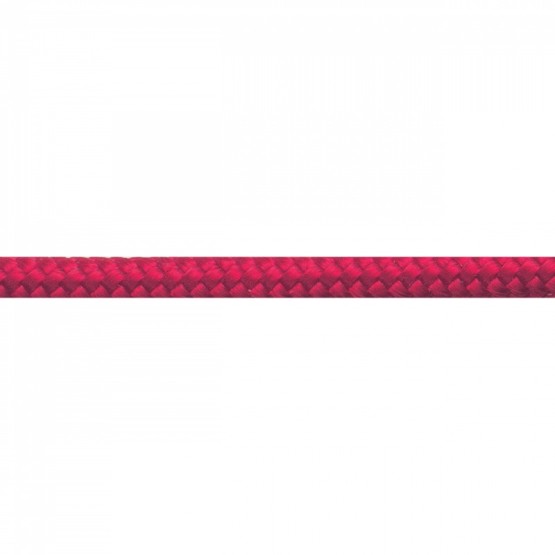

Trimstar
Double braid: Braided 16 strand HT Polyester core, HT Polyester cover.
-
- High durability.
-
Colors: Red, Green, Blue, Black, Yellow.
Diameters (mm / inches): 3 to 10 / 7/64’’ to 3/8’’
Diameter Weight Breaking Load Elongation % BL mm inches ktex Kg/100m lbs/100ft kgf lbf kN 50% 3 1/8 70 7,0 4,7 180 397 1,8 8,30 4 5/32 130 13,0 8,7 360 794 3,5 8,27 5 3/16 180 18,0 12,1 430 948 4,2 8,24 6 1/4 250 25,0 16,8 600 1 323 5,9 8,27
- Not ready to splice or tapering
- All around line.
Colors: Red, Green, Blue, Black, Yellow.
Diameters (mm / inches): 3 to 10 / 7/64’’ to 3/8’’
| Diameter | Weight | Breaking Load | Elongation % BL | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN | 50% |
| 3 | 1/8 | 70 | 7,0 | 4,7 | 180 | 397 | 1,8 | 8,30 |
| 4 | 5/32 | 130 | 13,0 | 8,7 | 360 | 794 | 3,5 | 8,27 |
| 5 | 3/16 | 180 | 18,0 | 12,1 | 430 | 948 | 4,2 | 8,24 |
| 6 | 1/4 | 250 | 25,0 | 16,8 | 600 | 1 323 | 5,9 | 8,27 |
