V-Cup

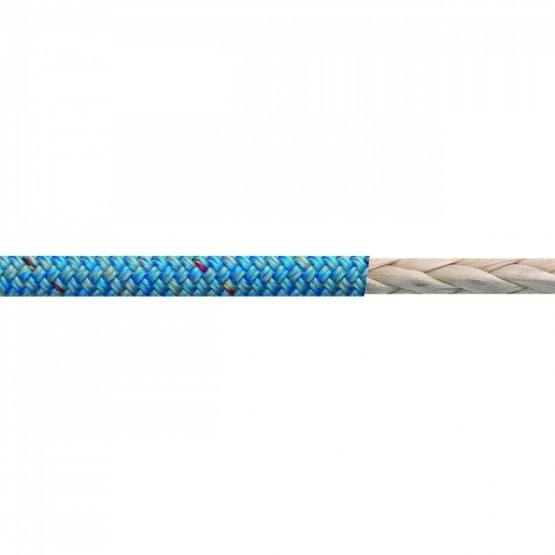

Double braid. 12 strand, coated Vectran® core, 24 plait 100% HT Polyester cover
24 or 32 plait cover for + 14mm.
-
- High load uses
- Low creep
- Ideal for halyards and guys
-
Colors: Mix Grey; Black, Royal blue, Red, Green, Orange and Yellow.
Other colors by demand.
Standard Diameters (mm/inches): 4 to 14mm / 5/32" to 9/16"
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 4 5/32 20,0 2,00 1,34 736 1 623 7,2 5 3/8 27,0 2,70 1,81 1 334 2 941 13,1 6 1/4 30,0 3,00 2,02 1 610 3 549 15,8 7 9/16 40,0 4,00 2,69 1 800 3 968 17,7 8 5/16 54,3 5,43 3,65 2 900 6 393 28,4 10 13/16 74,6 7,46 5,01 4 600 10 141 45,1 12 1/2 112,8 11,28 7,58 6 100 13 448 59,8 14 9/16 158,0 15,80 10,62 7 750 17 086 76,0 Elongation at 10% of BL 0,42% Elongation at 20% of BL 0,76% Elongation at 30% of BL 1,07% Elongation at 40% of BL 1,36% Elongation at 50% of BL 1,63% *Testing according to BS EN 12562:1999
** More diameters on demand
Colors: Mix Grey; Black, Royal blue, Red, Green, Orange and Yellow.
Other colors by demand.
Standard Diameters (mm/inches): 4 to 14mm / 5/32" to 9/16"
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 4 | 5/32 | 20,0 | 2,00 | 1,34 | 736 | 1 623 | 7,2 |
| 5 | 3/8 | 27,0 | 2,70 | 1,81 | 1 334 | 2 941 | 13,1 |
| 6 | 1/4 | 30,0 | 3,00 | 2,02 | 1 610 | 3 549 | 15,8 |
| 7 | 9/16 | 40,0 | 4,00 | 2,69 | 1 800 | 3 968 | 17,7 |
| 8 | 5/16 | 54,3 | 5,43 | 3,65 | 2 900 | 6 393 | 28,4 |
| 10 | 13/16 | 74,6 | 7,46 | 5,01 | 4 600 | 10 141 | 45,1 |
| 12 | 1/2 | 112,8 | 11,28 | 7,58 | 6 100 | 13 448 | 59,8 |
| 14 | 9/16 | 158,0 | 15,80 | 10,62 | 7 750 | 17 086 | 76,0 |
| Elongation at 10% of BL | 0,42% | ||||||
| Elongation at 20% of BL | 0,76% | ||||||
| Elongation at 30% of BL | 1,07% | ||||||
| Elongation at 40% of BL | 1,36% | ||||||
| Elongation at 50% of BL | 1,63% | ||||||
*Testing according to BS EN 12562:1999
** More diameters on demand
