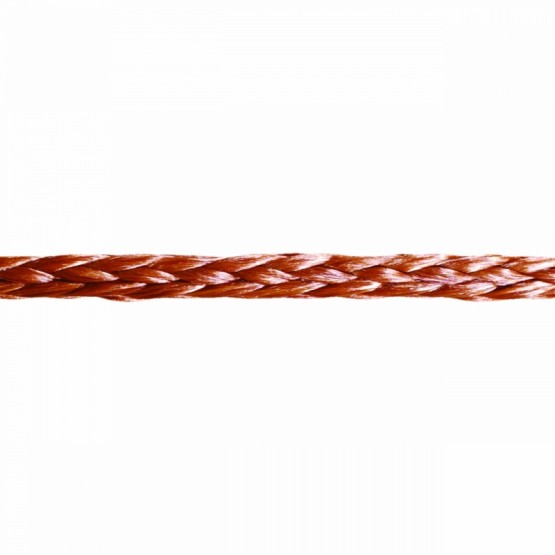

Z-Core
12 strand coated Zylon core ®
*Very technical rope. Please ask us for advice.
-
- Extreme low stretch
- Extreme high loads
- Loops
- Rudder systems.
-
Colors: TAN
Diameters (mm/ inches): 3 to 6 / 1/8’’ to 5/8’’
Diameter Weight Breaking Load mm inches ktex Kg/100m lbs/100ft kgf lbf kN 3 1/8 8 0,8 0,5 1.650 3.638 16,2 4 5/32 14 1,4 0,9 2.000 4.409 19,6 5 3/16 25 2,5 1,7 3.100 6.834 30,4 6 1/4 33 3,3 2,2 5.600 12.346 54,9
Colors: TAN
Diameters (mm/ inches): 3 to 6 / 1/8’’ to 5/8’’
| Diameter | Weight | Breaking Load | |||||
| mm | inches | ktex | Kg/100m | lbs/100ft | kgf | lbf | kN |
| 3 | 1/8 | 8 | 0,8 | 0,5 | 1.650 | 3.638 | 16,2 |
| 4 | 5/32 | 14 | 1,4 | 0,9 | 2.000 | 4.409 | 19,6 |
| 5 | 3/16 | 25 | 2,5 | 1,7 | 3.100 | 6.834 | 30,4 |
| 6 | 1/4 | 33 | 3,3 | 2,2 | 5.600 | 12.346 | 54,9 |
